Measure BIG, carry small.
A current clamp engineered for powerful performance and unmatched portability.
Now Available for Pre-Order!

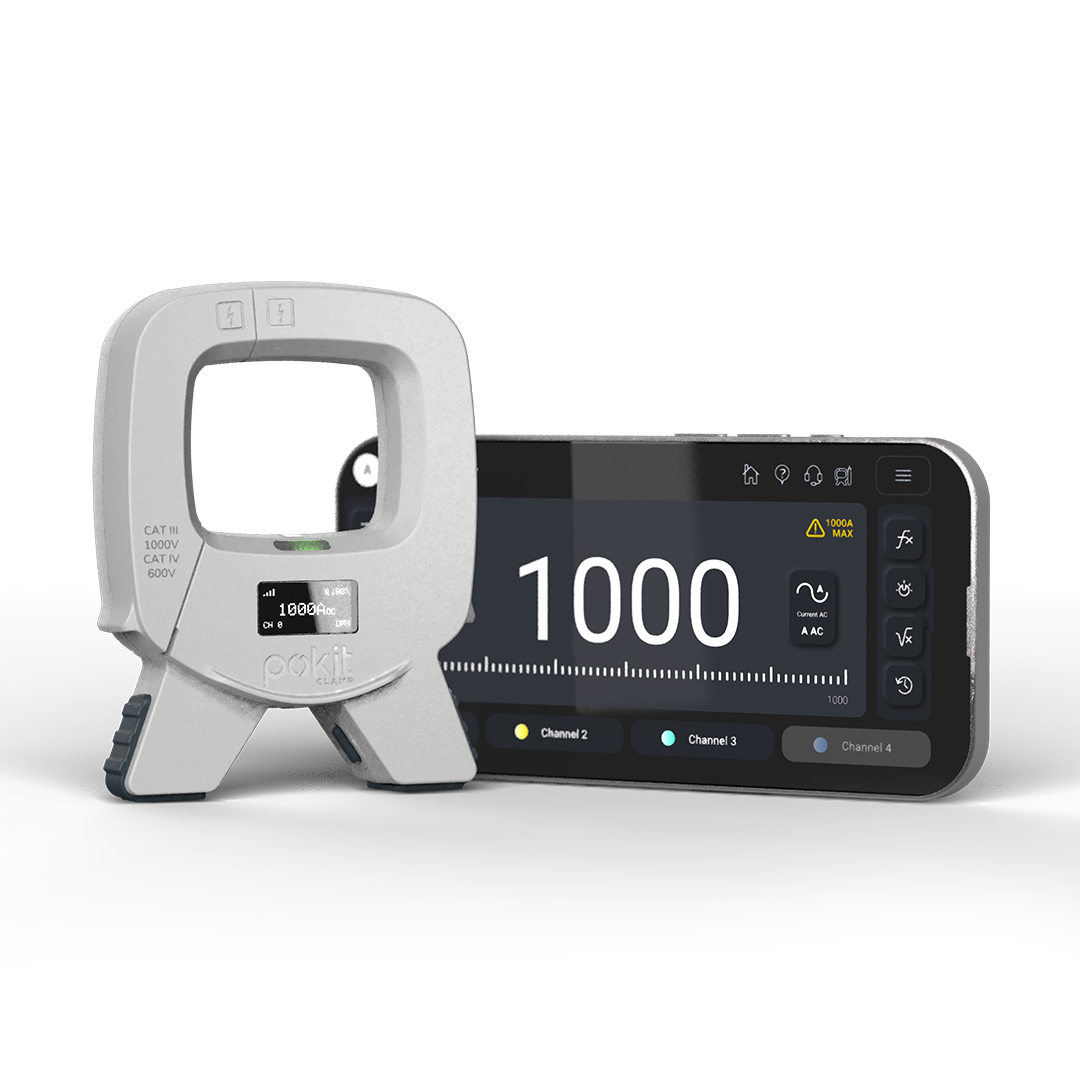

Pokit Clamp
AVAILABLE NOW FOR PRE-ORDER! SAVE 30% OFF MSRP.
Introducing the Pokit Clamp - an ultra-compact, contactless current clamp engineered for professionals who demand powerful capabilities with extreme portability.
Features:
- Measure true RMS AC and DC currents up to 600A
- 1000V CATIII, 600V CATIV
- Integrated OLED display
- Wirelessly connect to your smart device
- View current waveforms and spectral plots
- Standalone data logging
- Export and share data online
- Rechargeable battery
- Customisable colour channel indicator
- Integrated torch
- Internal ambient temperature sensor
- Precision user calibratable
- 2-year warranty, 30-day money back guarantee (T&Cs Apply)
Combine multiple devices:
- Connect up to 4-Clamps for synchronous multichannel current measurements
- Combine Pokit Pro for precise power measurements
- Pair with Pokit's new Power Analyser App Module (sold separately) to access advanced power analytics
Specifications
Device:
- Max Aperture: 35mm
- Rating: 1000V CATIII, 600V CATIV
- Compliance: CE FCC, C-Tick, MiC
- Recharging: USB-C
- Indicator: RGB LED
- Connectivity: Bluetooth 5.1 BLE
- Multichannel: Yes (4 current, 4 power*)
- Contactless Voltage Detection: Yes
- User Calibratable: Yes
- LED Torch: Yes
- Lanyard: Yes
- Rugged Cover: Yes
Multimeter:
- Current: 10mA to 600A AC RMS/DC max, ±2%
- Power*: 10uW to 360kW, ±2.5%
- True RMS: Yes
- True RMS Frequency: 40 to 100Hz
- Internal Temperature: 0°C to 60°C ±1%°C (32°F to 140°F ±1.8°F)
- External Temperature**: -40 to 120°C ±1% @25°C + 0.05%/°C (-40 to 248°F ±1% @77°F + 0.05%/1.8°F)
Oscilloscope:
- Current: 10mA to 600A AC/DC max, ±2%
- Power*: 10uW to 360kW, ±2.5%
- Analog Bandwidth: -3dB @ 100kHz
- Sampling: 16bit, 2M sample/sec
Logger:
- Logged Parameters: Current, Internal Temperature, External Temperature**, Power*
- Logging: 28kB, 20min/sample @ 3 months
- Sample Rate: 500ms to 24hr
Note:
* When combined with Pokit Pro (Sold Separately)
** Using the externa NTC (Sold Separately)
Modules
Core App Modules (Included):
Expansion App Modules (Sold Separately):
What's In The Box
- Pokit Clamp
- Clamp Rugged Cover
- Clamp Carry Hard Case
- USB-C Charging Cable
- Pokit Lanyard
- Pokit Clamp Manual
Shipping
Pokit Clamp is expected to begin shipment in October 2025
Shipping costs and delivery times are calculated at checkout and vary based on your location and choice of Postal or Express shipping.
Note: VAT/import tax is not included unless specified at checkout. For more details, refer to our Shipping Policy for a full list of applicable regions and countries.
Pokit Clamp
Sale price£152.00 GBP
Regular price£203.00 GBP (/)
The Pokit Clamp Advantage
Ultra-Compact
Engineered to be compact and portable, perfect for working in tight spaces or on-the-go.
Advanced
View multiple measurements, waveforms and logs on a single unified display with an intuitive touch interface.
Safe
Measure remotely, isolated and away from harm.
For Precision Power
Combine with Pro
Combining Pokit Clamp with Pokit Pro unlocks new advanced precision power measurements in multimeter, oscilloscope and logger:
- Easily switch between Watts, VA, and VAr readings
- View precise VA power waveforms
- View precise Watt, VA, and VAr power logs
- Combine up to 4-Clamps and 4-Pros for multi-phase power measurements
Expansion App Module
Pair with Power Analyser
The Pokit Clamp integrates effortlessly with Pokit's new Power Analyser App Module (Sold Separately), allowing you to conveniently monitor and analyses power in real time, all from a single, unified display.
- Access Watts, VAr, VA, PF, and cos φ measurements
- Visualize real-time phasor diagrams for 3-phase power insights
- View Spectral Analysis with Total Harmonic Distortion (THD)
- Includes advanced topology configurator
One App to Rule Them All
The Pokit App seamlessly integrates multiple measurement tools into one intuitive platform, all accessible from your smart device.
Core App Modules
Pokit Clamp seamlessly integrates with a suite of powerful app modules, each unlocking an essential measurement capability. With Pokit Clamp, you have all the measurement power you need—right in the palm of your hand.
Expansion App Modules
Pokit Clamp's Expansion App Modules are built for professionals who demand more. These modules let you enhance your Pokit Clamp with advanced capabilities and customisable features.
