It's great feature good. Just have to check before connectors or when measuring but for me a great meter.
I could connect my pokit pro with oscilloscopes and electronic signal generators without any problems.
Data Logger
Have you ever needed to take electrical measurements over an extended period but didn’t have a measurement tool on hand to do it? Look no further – a Pokit device will have you covered.
Pokit’s Data Logger Module allows you to measure AC/DC voltage, AC/DC current and temperature for up to 6 months per log. Using the data logger is simple – just set up your Pokit device, select your measurement interval in the Pokit App and start logging. You can then disconnect from your Pokit device and it will log remotely. View your log in the Pokit App or export it for detailed information including timestamps and exact measurements.
Pokit's Data Logger Module is straight-forward and easy to set up.
Multiple Logs*
Connect up to four Pokit devices to measure multiple logs simultaneously.
*Requires multiple Pokit devices.

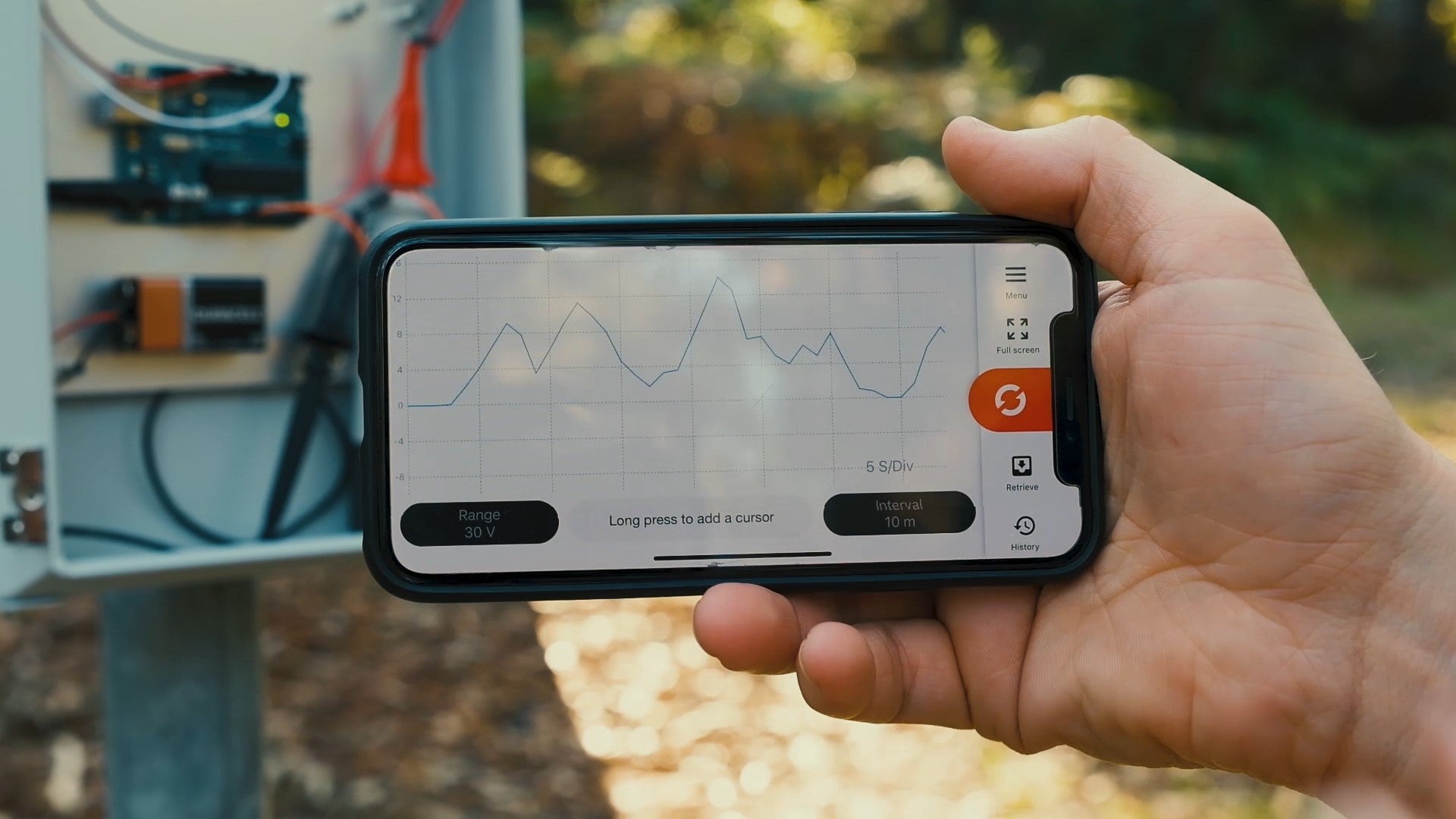

Real-time Data
View your log in real-time when connected to your Pokit device. Pinch and drag to clearly view your log.
Modes
Pokit's data logger can measure AC/DC voltage, AC/DC current or temperature.
Sample Interval
Set sample intervals of 500ms to 24hr with Pokit Pro and 1s to 1hr with Pokit Meter. Set a larger interval to log for longer periods of up to 6 months.
Save, Export and Share
Save your logs and export in .csv format to your mobile device, or share with others directly from the Pokit App.
Set and forget. Pokit's data logger can measure for up to 6 months without needing to be connected to your mobile device.
Set sample intervals of 500ms to 24hr with Pokit Pro and 1s to 1hr with Pokit Meter. Set a larger interval to log for longer periods of up to 6 months.
Why Pokit Data Logger?
Getting started with the Pokit Data Logger Module is a breeze. First, set up your Pokit device according to its instructions. Next, select your desired measurement interval directly from the intuitive Pokit App. Once configured, initiate the logging process with a single tap.
Why Pokit Data Logger?
Thanks to the Pokit Data Logger's remote logging capabilities, you no longer need to be connected to your measurement setup. With the assurance that your data is being accurately collected, you can disconnect from the Pokit device and go about your tasks. When you're ready, access your logs through the Pokit App, where you'll find comprehensive information complete with timestamps and exact measurements. For those who require in-depth analysis, the option to export your logs provides detailed insights for further evaluation.
Why Pokit Data Logger?
Incorporating the Pokit Data Logger Module into your workflow significantly enhances your monitoring capabilities. Capture precise measurements without the need for constant oversight. The data logger has countless applications from home electronics projects to professional industrial setups.
Compare the data logger specifications of different Pokit devices to see which one is right for you.
* External Temperature is only measurable with the Pokit Pro NTC Temperature Probe
Voltage, Current, Temperature
Voltage, Current, Temperature
28kB, 20min/sample @ 6 months
12kB, 45min/sample @ 6 months
500ms to 24hr
1sec to 1hr
1mV to 600V DC, 600V AC (True RMS), CAT III, ±1%
10mV to 60V DC, 42V AC (True RMS), ±1%
1uA to 10A AC (True RMS)/DC max, ±1%
1mA to 2A max, ±1%
0°C to 60°C ±1%°C, 32°F to 140°F ±1.8°F
0°C to 60°C ±1%°C, 32°F to 140°F ±1.8°F
-40 to 120°C ±1% @25°C + 0.05%/°C
-40 to 248°F ±1% @77°F + 0.05%/1.8°F
Experience Precision Monitoring with the Pokit Data Logger
